Description

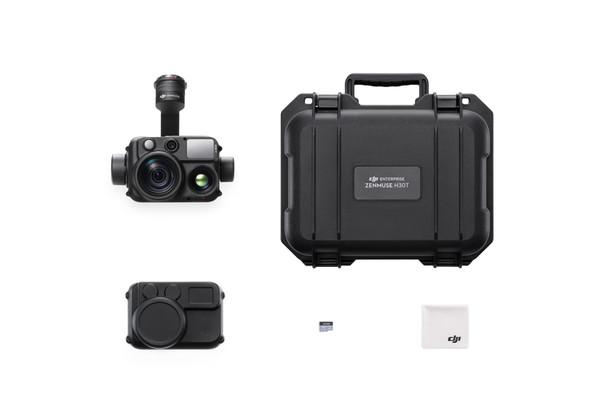

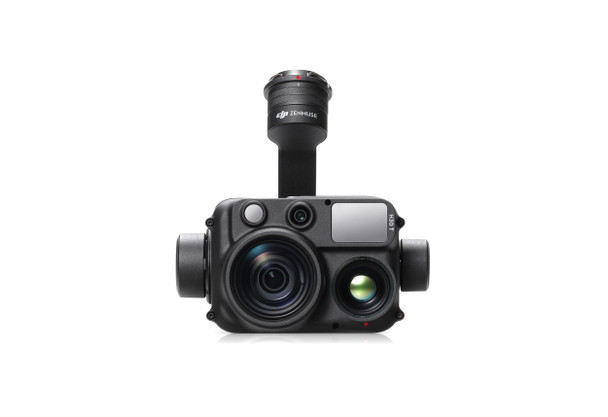

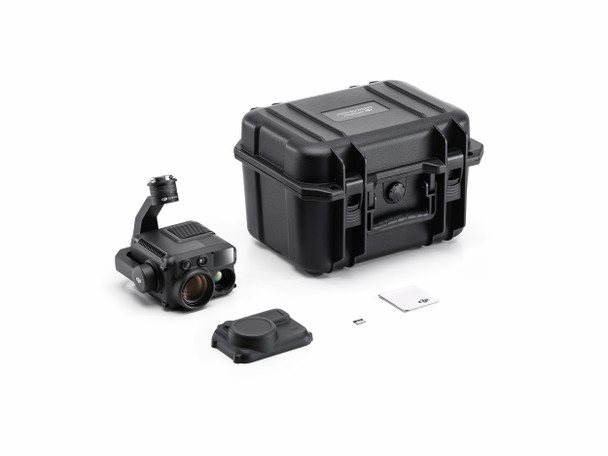

The all-weather, multi-sensor flagship Zenmuse H30T Five-Sensor Camera integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser rangefinder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations including public safety, energy inspection, water conservation, and forestry.
All-Weather, Full-Day and Multi-Sensor Flagship Payload
- Wide Camera: 48 MP 1/1.3" CMOS (24mm Focal Length)
- Zoom Camera: 40 MP 1/1.8" CMOS (34x Optical Zoom, 400x max digital zoom)
- Laser RangeFinder: 3 km (~9842 ft) Range
- Radiometric Thermal Camera: 1280x1024 (52mm Focal Length)
- NIR Auxiliary Light: Provides better auxiliary illumination for zoom camera
The Zenmuse H30T empowers operators with high-magnification zoom once a target is recognized using the wide camera view/sensor. The laser rangefinder provides distance and location information of a subject which can be mission-critical information in many applications such as search and rescue, inspection, and more.
Laser ranging can measure the distance of objects within the measurement range (up to 3 km), and displays the distance from the aircraft, relative height, and GPS position of the measured object.
Accurate temperature management functionality on the H30T is made available by its radiometric thermal imaging capabilities. This functionality enables operators to take real-time precise temperature readings and monitor temperatures of subjects on a job site or critical infrastructure assets. Spot Metering and Area Measurement features allow you to tap a subject point on the screen and receive an instant surface temperature reading, while Area Measurement requires that you select an area (by drawing a subject box on the screen) and the lowest, highest, and average temperature of the area will be displayed.
Thermal images captured using the Zenmuse H30T are saved in R-JPEG format which embeds the image's temperature data and information. Using the DJI Thermal Analysis Tool you can measure and evaluate temperatures when preparing reports, or adjust imaging parameters such as Emissivity and Reflected Temp.
Superior Zoom Performance
- 34x max. optical zoom
- 400x max. digital zoom
- Optimized stabilization in telephoto video
- Maintained clarity during zooming
- Faster focusing speed
Additional Features of the Zenmuse H30T
- IP54 Rating
- -20°C to 50°C (-4°F to 122°F) operating temperature
- Active image stabilization and EIS
- Night scene mode
- Temp Alarm
- Isotherms
- Color Palettes
- Gain Modes
- R-JPEG Images
Zenmuse H30T Intelligent Camera Functions
Click to Aim: No more having to waste time trying to use your gimbal yaw and tilt controls, simply double-click on the point of interest and your camera/gimbal will automatically move to the point of interest.
Smart Track: Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
High-Res Grid Photo: This function allows you to take an overview photo using the wide camera sensor, and using the zoom camera, a set of 40 MP images will be captured of the grid area. This allows you to efficiently be able to observe a subject and easily be able to view the subject in greater detail.
Night Scene: This function provides great vision benefits in low-light environments with enhanced noise reduction and IR light options.
